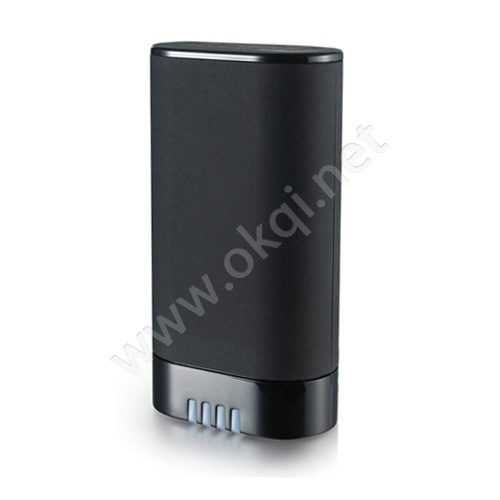

5000mAh Power Bank ONESKY -PB009

Products

Contact Us

OKQI（Chat Now）

Interface Applicable Range :
Nokia DC : Nokia N70/N71/N72/N73/N Serials.new style modal or and other compatible type
Mini USB : Motorola V3/V3i/V3e/V3m/E680g/E770/E725/E685/E1070 and other compatible type
Micro USB: Samsung D828/D800/D808/D525/T809/804SS/P308/E568/F359/F519/D908 and other compatible type
For Ipad ,Iphone and other electronic equipment charging
Take Ipad , Iphone and other electronic products USB cable to connect with the portable power storage ,it can be finish charging

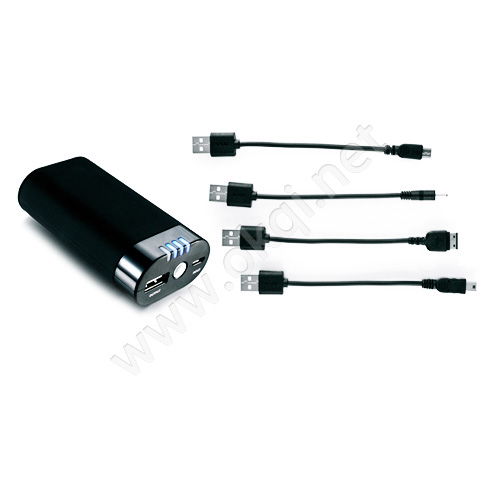

Packing List
Portable Power *1
Mini USB Cable*1
Samsung 20pin cable *1
Micro USB Cable * 1
Nokia DC2.0 cable *1
Manual *1

Attention Items
1. Please charge this product to saturation at the first time using
2. When using this product , please open the electronic device screen , confirm the charging connection flag is displayed correctly to that to ensure the product is working properly
3. In the process of charging for electronic products , when blue power indicator cycle flashes ,it means power shortage for portable power storage , please recharger it .

Maintenance Methods
1.Keep this products drying , rain , moisture and various kind of liquid will corrode the electronic components and circuits
2.Do not put this product in high temperature place , higher temperatures will shorten the life of electronic devices , damage the battery and make some plastic ageing , even explosion
3.Do not throwing , dropping or knocking this product , rough use maybe damaged the internal circuit board
4.Don't apart this product by yourself .Charging protection , discharge protection , overload protection , short circuit protection
5.Power Capacity Instruction

This Portable power fit out with power lights indicator , it is facilitate you to control the portable power capacity , instruction as below

Power Light Indicator

One light

Two lights

Three Lights

Four Lights

Power Capacity

25%

25-50%

50-75%

50-75%

Introduction :
This product is a light weight , environmentally friendly , high capacity stylish mobile power for portable devices anywhere , anytime , without additional power consumption will keep you from trouble , this product use high performance lithium-ion batteries , light weight , safety ,environmental protection .Via the attached wiring , either directly to power the portable device ,but also to the built-in battery , it provides adequate back-up energy for the wild expedition , travel , Adventure ,travel home .

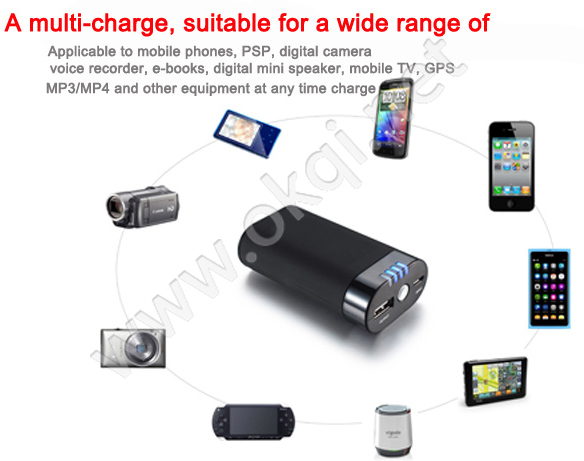

Applies For
1.Suitable for Most mobile Phone in the market
2.Suitable for Handheld video games PSP ,NDSI , NDSL ....
3.Suitable for MP3 , Mp4 ,MP5 ,E-Books , GPS, Walkie-talkie
4.Standard USB interface output , compatible with all USB charging devices

Performance
1.Exquisite , fashion design , to charge handheld device at any time for business people , fashion icon , outdoor hiker and etc .
2.Plug & Play , auto-sheep mode function , when no current output , will automatically sleep
3.Short -circuit protection , over charge protection , over discharge protection , intelligent protection of lithium , high conversion , leakage protection

Technical Parameters

ITEM

Spec.

Features

Capacity

3.7v/4400mAh

High-energy green Lithium Polymer battery cells

Input Voltage

DC4.75~6.25V

Adaptive intelligent Charge management system voltage

Input Current

700mAh

Intelligent current input management system

Rated Output Voltage

DC5.0+-0,25V

Adaptive voltage output ,intelligent low-voltage alarm

Output Current

1000mAh

Intelligent load detect and steady current output management system

Charging Time

5-6H(around )

High charging efficiency

Static Power Consumption

<100uA

Ultra low standby power consumption

LED Lighting

51m@20mA

Cord ,white

Cycle Life

>300TImes

(300 cycles ,the capacity to maintain more than 80%)

Size

74*56*23MM

Case

Net Weight

30g

Product net weight (without Accessories )

Accessories

1. Mini USB Cable
2. Samsung20pin cable
3 Micro USB Cable
4. Nokia DC2.0 Cable
5. Manual  6 Certificate

Use Guidelines
Note :Please Charger this Product to saturation at the first time using

1.Power Detection
Checking Power capacity , press the key at the side of portable power storage ,the blue LED light would have the following states .
a.Display the current lithium battery capacity
b.Light Flashes indicate low power
c.Light does not show indicates power has been exhausted must be recharged or product failure

2. Methods For Product Charging
Method one :connect computer
a.Remove the Micro USB Cable ,take the product interface to micro USB Jeck ,the other end of the USB to the computer's USB input port
b.Blue Light Cycle Flash Means Charging , fully charged is the bright blue light , Method Two , Connect adapter
c.Remove the Micro USB Cable , take the product interface to Micro USB jeck , the other end of the USB to the adapter's USB input port
d.Blue Light cycle flash means charging , fully charged is the bright blue light

3. How to charge your device

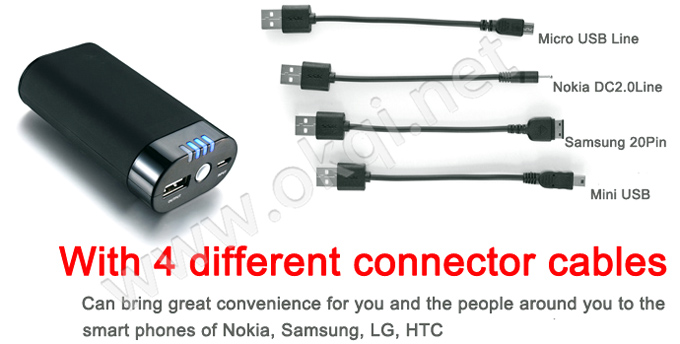

This portable Power is using to charge the mobile phones and digital products with DC-5V input , provide you four kind of charge interface parts ( Nokia DC/Mini USB /Micro USB/Samsung 20 pin Calbe ),it can bring great convenience for you
l Charge Mobile phone or digital products
Take the USB cable from the box , and connect to corresponding interface , it can give your mobile phone charging now .
