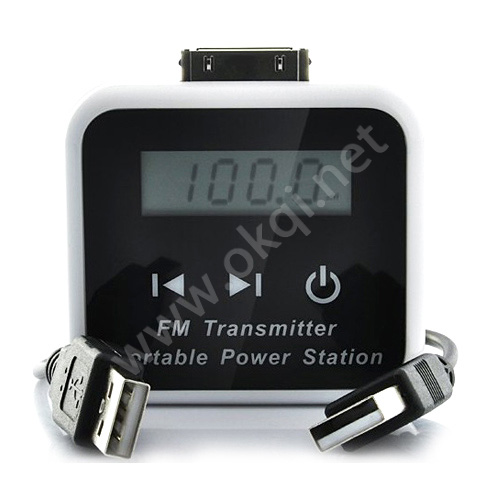

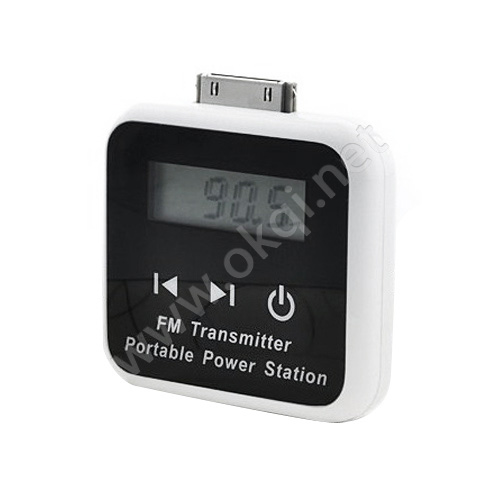

FM Universal Solar iPhone Charger
Portable Power Station Manual

Thank you for purchasing our product, For optimum performance and safety,please read these instructions carefully before operating the product．Please keep this manual for future reference．
Note：Please charge the power station completely before first use
Patent No 200920260039.1
200930170372.9

Feature
1．High Capacity：1200mAh will quickly charge your lphone，lpod，cellphones，cameras，MP3，MP4，Camera
2．RechargeabIe Lithium-ion battery can be charged up to 500 times．

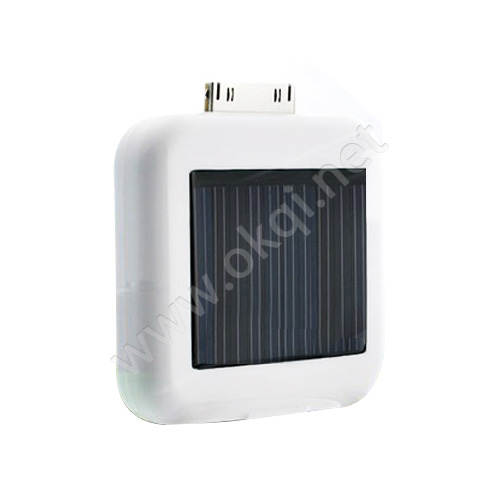

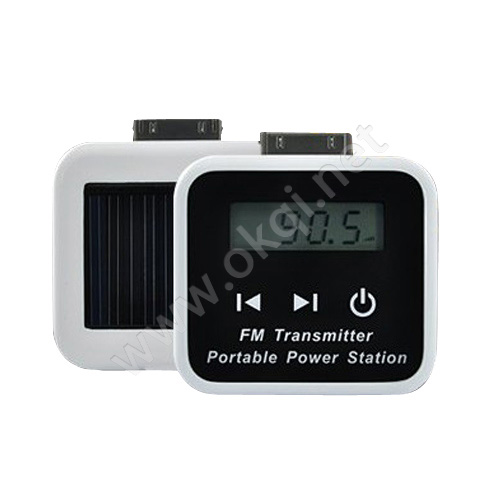

3．Solar panel design，Recharge power station under sunlight．
4．LCD screen lndicates charging model and FM channel.
5．FM Transmitter function can be compatible with all 2.5mm and 3.5mm digital players,such as moblle MP3, MP4, computer, PSP.
6．Intellectual protection chip provides overcharge，overdischarge，overload and short circuit protection．

Specification:
Peak power supplied by photocell：0.18W
Solar panel specification：5V／35mA
Battery type：Lithium-ion battery
Dimension：61.55.5.1.4mm
Weiqht：52g
Capacity：1200mAh
Input Voltage：4V一8V
0utput Voltage：5V一5.5V
Operating temperature：-10℃-50℃
Charging time：about 2.5 hours
Manufacturer Ref：THT-003

Compatible with:
iPhone，iPod，different brand mobiles
MP3, MP4, PSP, Camaras

How to use
1．Charge your power station

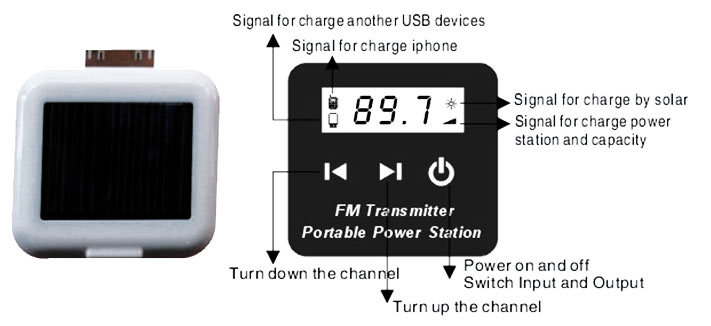

1)Connect your power staticn to your PC via USB cable and press button to make power station stay input condition，Then you will see and flash
2)Connect your power station to Jack via iPhone Or other digital products AC adapters to charge and press button to make power station stay input condition，Then you wilI see and flash
3)Put your power station under sunlight to charge ,When the power station is power on you wilI see the signal from the screen when the power station is power off you will see the blue light from the screen

2．Charge your Iphone，all USB Devices

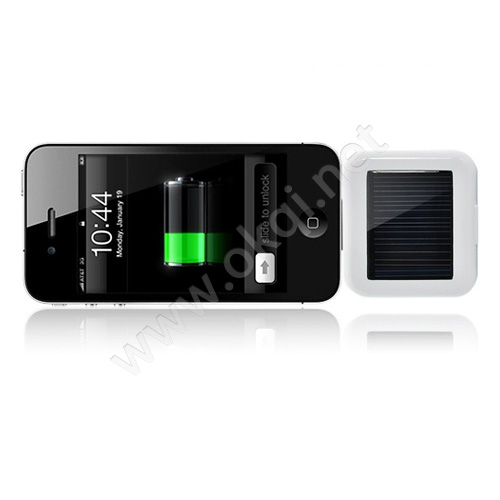

1、Directly plug your power station into your iphone／ipod and press button to make power station stay Output condition
then you will see the signal from the screen

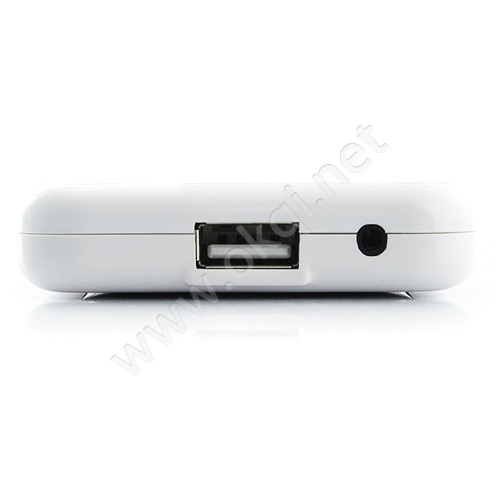

2)Connect USB cord into yo r power station,another side into your digital products and press buttonto make power station stay output condition which you will see the signal from the screen

 3．Pull out the power station when charging is finished

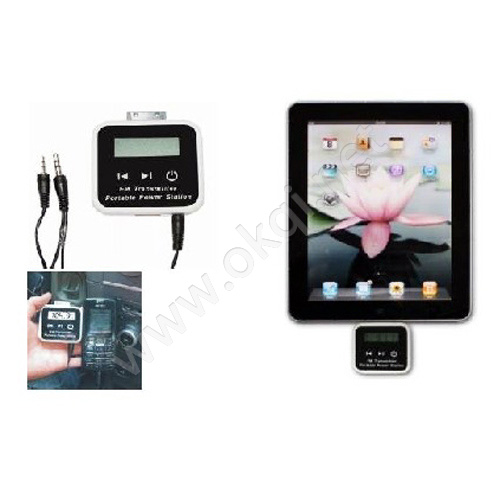

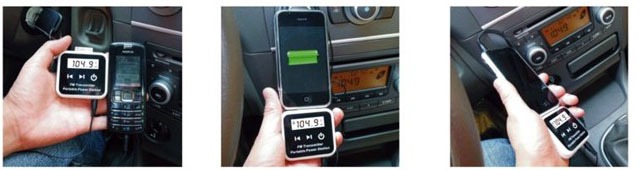

4．Operate the FM Transmitter Function
1) Push the button to turn on the power.
2) Push the button to adjust the power station channel to be the same as that of Car FM or common FM radio.

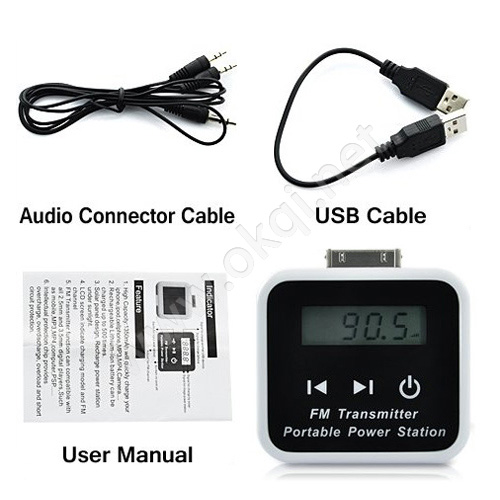

3) Use the audio cable to connect the digital products to Powe r station. 0ne side of the cable is connected to power station,and another side is connected to 2.5mm or 3.5mmm digital player.

Note：There iss no need to use the audio cable for iPhone／iPod,just plug the Jack of the power station into your Iphone／ipod.
