Thank you for Purchasing our product. For optimum performance and safty，please read these instruction carefully before operating the product. Please keep this manual for future reference.

Summary
Use the HDMI Camera Connection Kit Adapter, incredibly watch slideshows and movies on the big screen in up to 720p by connecting your iPad，iPhone 4，or iPod touch(4th generation) to an HDTV or HDMI-compatible display. Suport can be up to 1080p HD (movies play at up to 720p).

Through the HDMI Camera Connection Kit，it's incredibly easy to download photos from your digital camera to your iPad too. It gives you two ways to import photos and videos. One is using USB cable, another one is reading from SD/Micro SD card from card reader, The Connection Kit supports standard photo formats such as JPEG and RAW etc.

Version：CompatibIe with IOS 4.3
Advantage：Have AV Port and HDMI Port together. Connect to iPad data port directly
no software lnstallatlon
Disadvantage：Wth no guarantee that all functions normally work when IOS updates
new version.

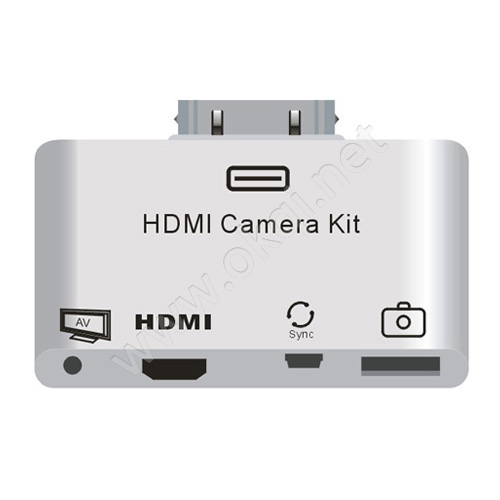

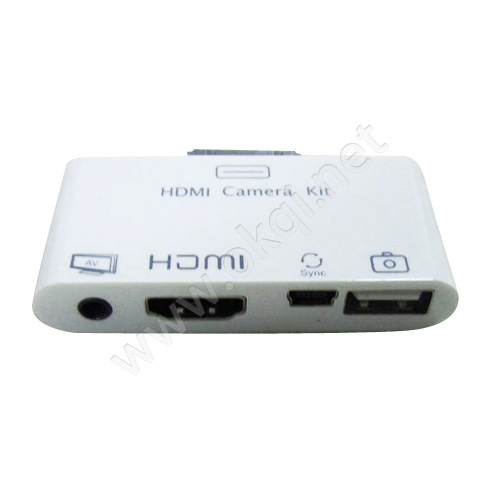

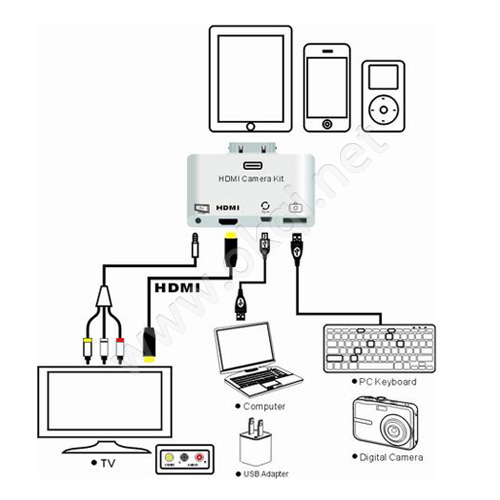

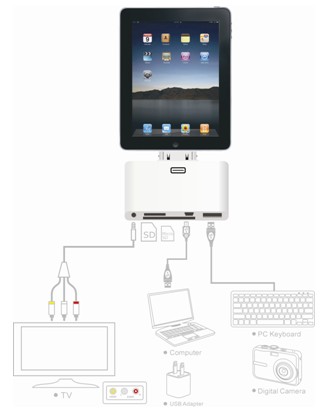

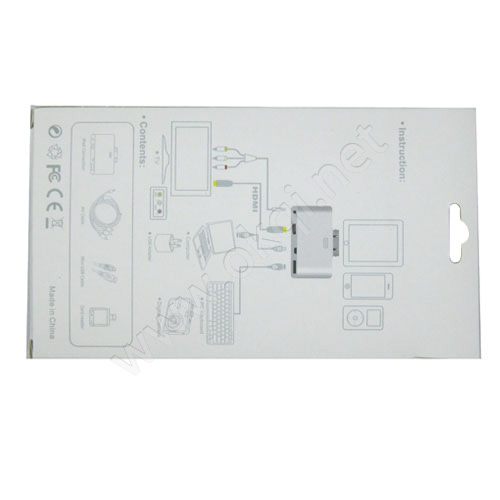

How to use 4 different ports:
1. USB Port：Plug the connection kit into the dock connector port on your iPad and then attach your digital camera or iPhone (excluded iPhone3G) via an USB cable. Or import photos to iPad through USB flash disk or by card reader reading the SD card/Micro SD card contents. Besides, the USB port supports external PC keyboard input.

2. HDMI Port：Connect the HDMI Connection Kit Adapter to your iPad, iPhone 4, or iPod touch(4th generation) via the 30-Pin dock connector and to your HDMI-compatible display using an HDMI cable. After you can enjoy the High Deftnition movies slideshows.

3. 3.5mm DC AV Port：Output video toTV. Plug the connection into the dock connector port on your iPad/ iPhone/ iTouch/ Nano/ Classic；attach TV using the accompanying TV cable.

4. Mini USB Port：Charging＆Sync data. Plug the connection into the dock connector port on your iPad/ iphone/ iTouch/ Nano/ Classic；attach power adaptor or computer using the accompanying mini USB cable.

After plug in the connection，your iPad automatically opens the photos APP，which lets you choose photos to im port, then organizes the selected photos into albums. When sync iPad to your PC or Mac, the photos in your iPad are added to your computer’s image library.

The 4 in l Connection Kit supports standard photo formats such as JPEG and RAW etc.
The pictu re files need to be saved in named “DCIM” folder. The digital camera can creat“DCIM” folder automatically, but if USBflash disk, you must creat“DCIM” folder and copy manually.

Note：The 4 in 1 Connection Kit has 4 ports. Except 3.5mm DC AV port and HDMI port can work with Mini USB port at the same time, the other ports can not work at the same time.

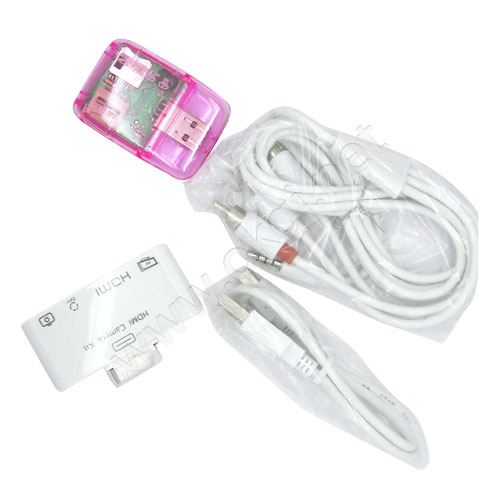

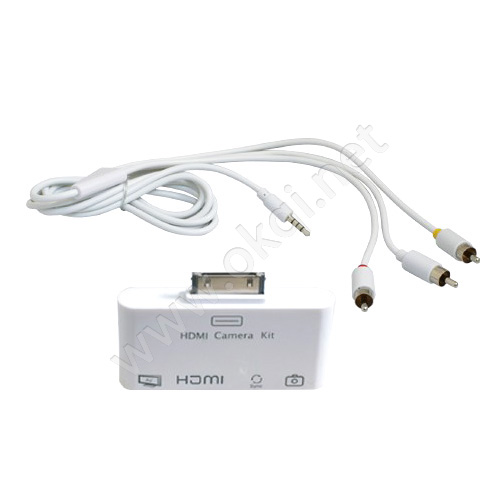

Incidental Accessories：Mini USB Data Cable, 3.5mm AV Cable, 1pcs Card Reader
